Oem Electronics Printed Circuit Boards Manufacturer Multilayer Pcb Circuits Board

Product Categories
FASTPCBA Co., Ltd.
Contact Now

Oem Electronics Printed Circuit Boards Manufacturer Multilayer Pcb Circuits Board

  • 1
  • 2

Brand Name : FASTPCBA

Model Number : Multilayer Pcb Manufacturer

Certification : ISO13485, IATF16949, ISO9001

Place of Origin : China

MOQ : 1PCS

Price : USD 0.1-3/ pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/month

Packaging Details : 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.

Name : Multilayer Pcb Circuits Board

Keyword : Oem Electronics Printed Circuit Boards Manufacturer

Min line/space : 0.075/0.075mm

Silkscreen : Min size 0.006″(0.15mm)

Min solder mask clearanace : 0.003”(0.07mm)

PCBA Testing : X-ray,AOI Test,Functional test

Tolerance of pcb : ±5%

Component sourcing : Yes

Contact Now

Oem Electronics Printed Circuit Boards Manufacturer Multilayer Pcb Circuits Board

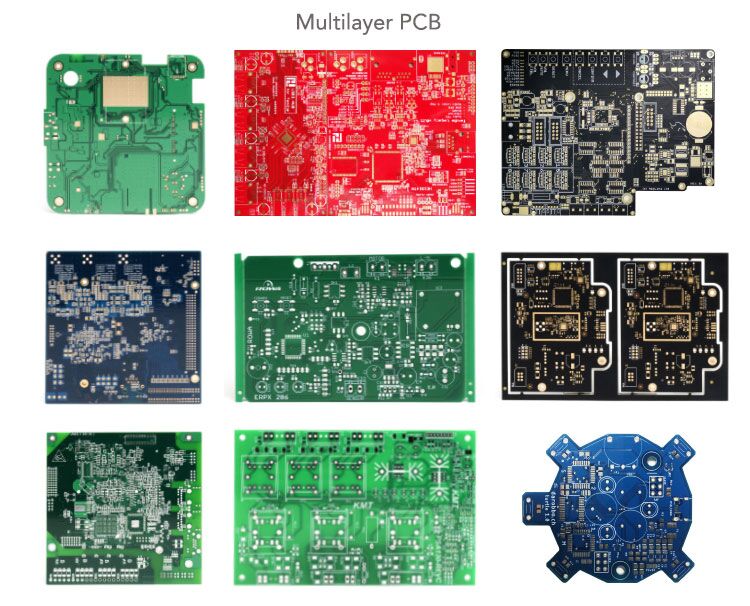

Multilayer PCB or multilayer printed circuit boards is a circuit board composed of two or more conductive layers (copper layers). Multilayer PCB can be divided into Multilayer Rigid PCB, Multilayer Flexible PCB, Multilayer Rigid-flex PCB. The copper layer is pressed together by the resin layer (prepreg). Due to the complexity of the multilayer PCB manufacturing process, low yield and difficulty in rework, their prices are relatively higher than single-layer and double-sided PCBs.

FASTPCBA manufactures up to 48 layers of multi-layer PCB, accepting pure single material or mixed pressing materials: Fr4, Rogers, Polymide, metal core etc.

Multilayer Printed Circuit Boards Capability :

Min. Mechanical

drill size

 6mil(0.15mm)

Hole Registration

 +/-3mil
PTH Hole Tol. +/-2mil
NPTH Hole Tol. +0/-2mil or +2/-0mil
Max aspect ratio 30:1

Depth Tol. Of

backdrill

 +/-4mil
CounterSink 82° ,90°,120°,135°
Impedance Control Single end +/-5 OHM(<=50 OHM),Advance +/-5%
Differential Pair

<=50 OHM +/-5 OHM , >50 ohm +/-10% , Advance

+/-5%
Outline size Tolerance +/-4mil
Outline location Tolerance +/-4mil
Min. Bow&Twist Advance 0.1%
Solder mask color

Green Glossy , Blue , green Matte , Red, Yellow

,White ,Purple
Min. Solder mask Birdge 4mil(Green), 5mil(other color)
Silkscreen Color White, Black,Yellow
Gold finger Bevelling Tol. +/-5°
Min. Resistance Test 10 OHM
MAX Insulation resistance Test 100 OHM
MAX Test Voltage 500V
MAX Test Currency 200mA

Oem Electronics Printed Circuit Boards Manufacturer Multilayer Pcb Circuits Board

Benefits of Multilayer PCBs (compared to single or double-sided PCBs)
Higher assembly density
Smaller size (considerable savings on space)
Increased flexibility
Easier incorporation controlled impedance features.
EMI shielding through careful placement of power and ground layers.
Reduces the need for interconnection wiring harnesses (reduces overall weight)

FASTPCBA is an Experienced Multilayer PCB Manufacturer
FASTPCBA has been producing Multilayer PCBs for over 20 years, our skilled team members have the knowledge and experience to handle your multilayer PCB needs. we have solved all types of problems with multilayer PCBs from various industries.
To speak to us about your project, contact FASTPCBA today!
